Measured Building Survey of a Prestigious Grade I Listed Castle
A detailed measured building survey of a prestigious Grade I listed castle in Lincolnshire, combining 3D laser scanning, accurate GIA calculations, floor plans, roof plans and external elevations to support insurance and wider heritage property requirements.
- 3d Laser Scanners, Measured Building Survey
Project Overview
Fosse Surveying was commissioned to carry out a detailed measured building survey of a prestigious Grade I listed castle set within the Lincolnshire countryside. As one of the highest levels of listed building designation in England, the project called for a careful, highly accurate approach suited to a property of this scale and architectural significance.
The main focus was to establish a reliable Gross Internal Area (GIA) that could be used to inform an Insurance Reinstatement Cost Assessment. Given the scale, age and architectural complexity of the property, accurate measured data was essential to provide a dependable basis for the assessment.
While on site, our team also captured the information required to produce full floor plans, roof plans and external elevations, creating a comprehensive measured record of this significant historic building.
Scope of work
The project included:
- Detailed measured building survey
- Gross Internal Area calculations

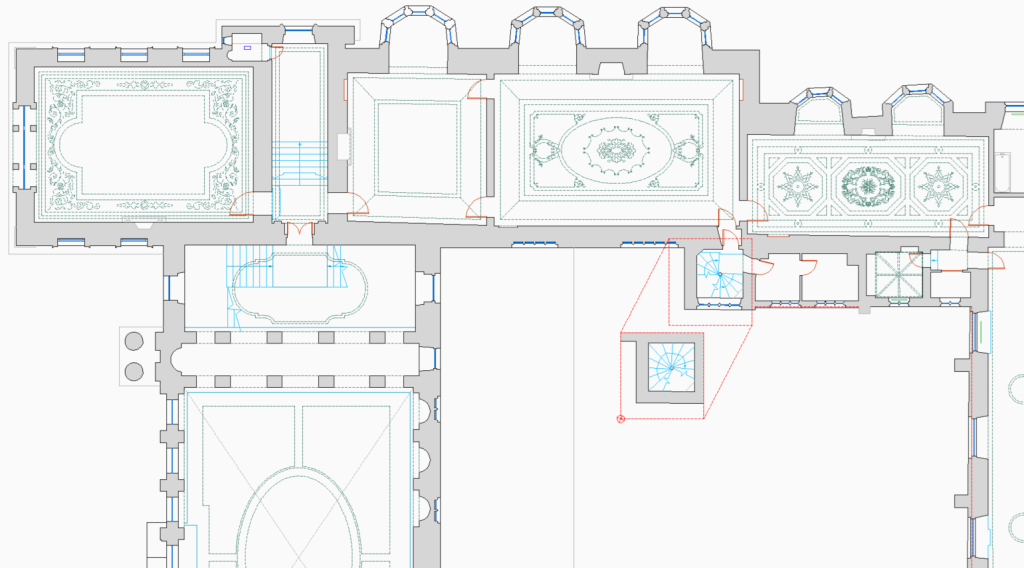

- Full floor plans
- Roof plans

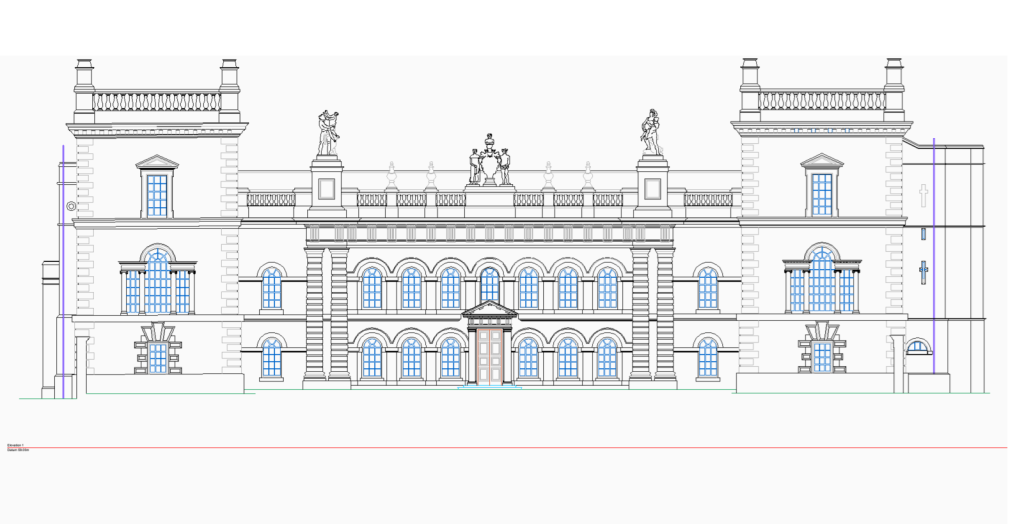

- External building elevations
- 3D laser scanning and measured data capture
- Recording complex architectural geometry
- Coordinated survey information across the property
By capturing the wider building information during the same survey programme, Fosse Surveying was able to provide considerably more than a single area calculation, creating a detailed set of measured drawings for future use.
Surveying a complex Grade I listed building
Surveying a historic property of this significance is very different from capturing a modern commercial building. With centuries of architectural development reflected across the castle, the survey needed to account for complex layouts, different building periods and an exceptional level of external detail.

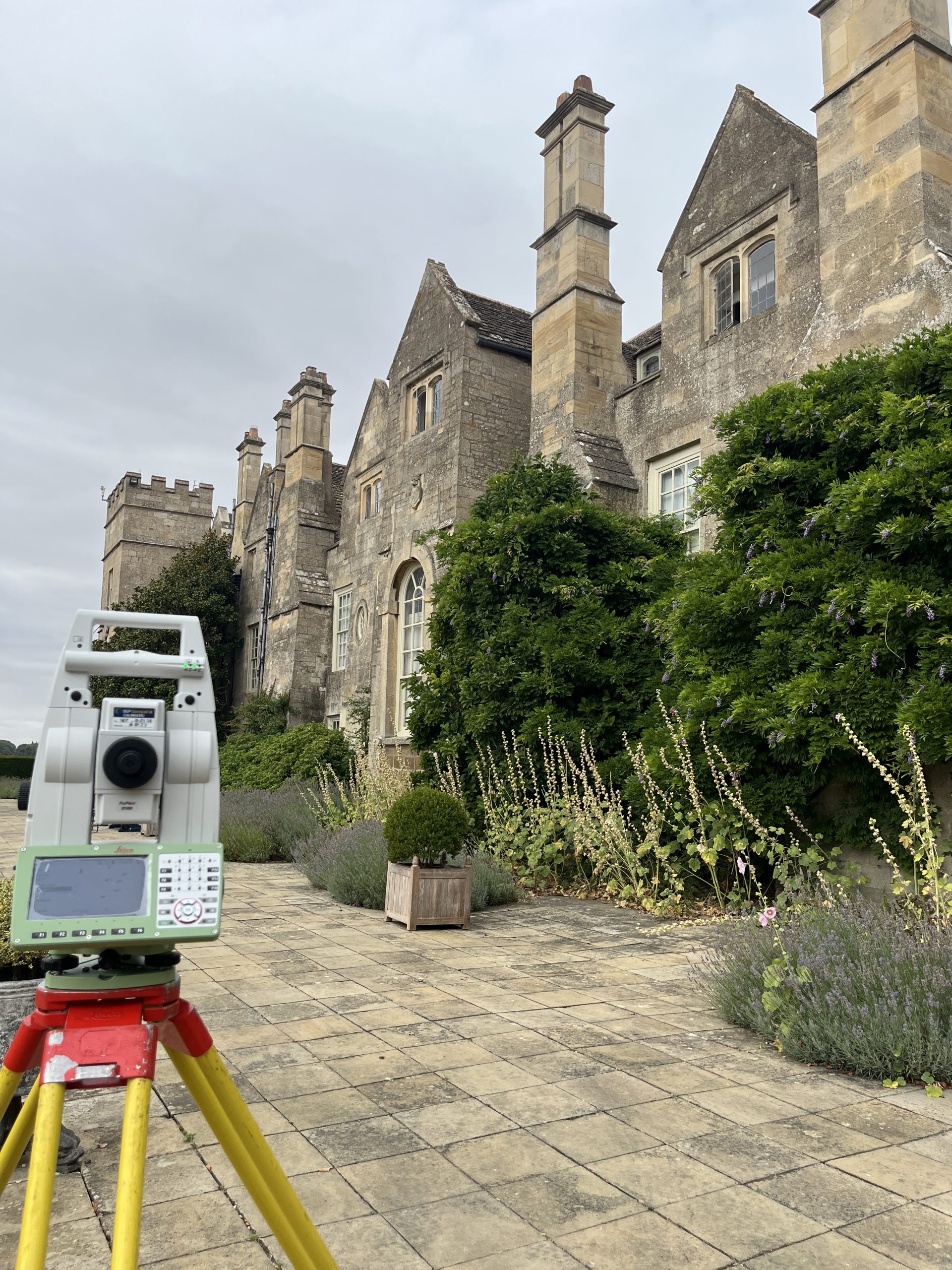

The castle has evolved over centuries, resulting in a complex arrangement of rooms, different building sections and highly detailed elevations. As the project photographs show, the property includes everything from large symmetrical façades and formal courtyards to older stone elevations, varied rooflines, tall chimneys and intricate architectural detailing.
Capturing these elements accurately required a combination of professional surveying equipment and a carefully planned approach across both the interior and exterior of the property.

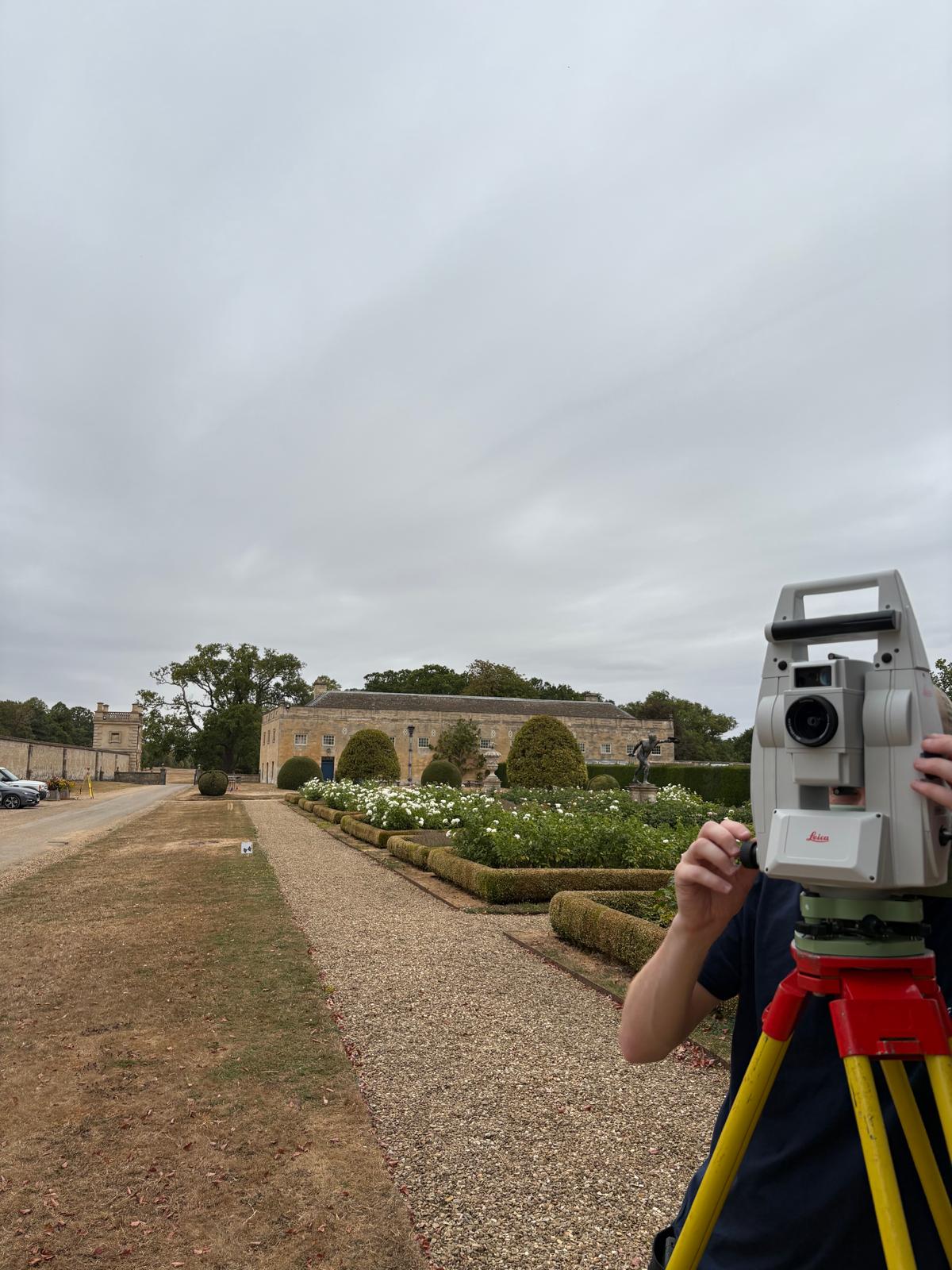

Our team used 3D laser scanning and survey equipment to build an accurate picture of the existing building, while working carefully within the sensitive surroundings of a Grade I listed heritage asset.
Accurate GIA for insurance reinstatement cost assessment
The main purpose of the survey was to provide a sufficiently accurate Gross Internal Area measurement for use within an Insurance Reinstatement Cost Assessment.
For a large and architecturally complex heritage property, relying on historic plans or approximate floor areas can introduce unnecessary uncertainty. An up-to-date measured building survey provides the assessor with a much clearer understanding of the property’s current size and configuration.
The survey therefore provides reliable measured information to support the subsequent insurance assessment, while the additional drawings create a valuable record that can be used for wider property, conservation and estate management purposes.
Trusted to survey a nationally significant heritage property
Grade I listed buildings require a careful and considered surveying approach.
Our team needed to capture the level of information required without unnecessary intervention in the historic fabric, while navigating the practical challenges created by a large and complex property.
The surrounding countryside and extensive grounds also add another dimension to projects of this nature. Establishing accurate survey control across the site allows information captured around different elevations and areas of the property to be brought together into one coordinated survey.
For heritage owners, estate managers, architects and consultants, this creates a dependable record of the building as it stands today.
Key Achievements
Reliable Gross Internal Area data
Accurate measured information captured to support an Insurance Reinstatement Cost Assessment.Comprehensive measured drawings
Full floor plans, roof plans and elevations produced alongside the primary survey requirement.Complex heritage property captured
Detailed survey data recorded across a large Grade I listed historic building.Efficient multi-purpose survey
One coordinated survey programme created information suitable for insurance and wider property requirements.Sensitive surveying approach
Modern survey technology used to capture detailed information within an important historic environment.
Surveying historic and listed buildings across the UK
Heritage buildings present unique challenges, from irregular layouts and historic alterations to complex façades and sensitive architectural features.
Fosse Surveying combines modern 3D laser scanning and measured building survey techniques with experience working on significant heritage properties, providing accurate information for architects, property owners, estate managers and consultants.
Whether the requirement is an Insurance Reinstatement Cost Assessment, refurbishment, conservation project or an accurate record of an existing building, we can tailor the survey and final deliverables around the needs of the project.
Planning a survey of a listed or historic property? Contact Fosse Surveying to discuss your requirements.
